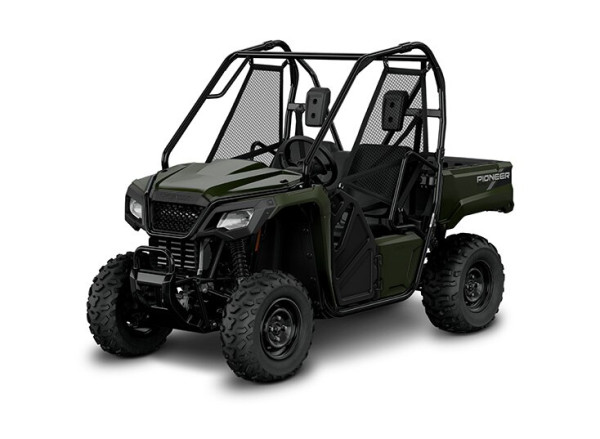

2026 Honda Pioneer 520
Inventory Details
| Sale Price | $16,627.00 |
| Price | $17,127.00 |
| Condition | New |
| Year | 2026 |
| Make | Honda |
| Model | Pioneer 520 |
| Stock Number | SN-195 |
| Category | SxS/UTV |
| Sub Category | Recreation/Utility |
| Colour | Black Forest Green |
The 2026 Honda Pioneer 520 is a compact, durable side-by-side UTV with a 518cc liquid-cooled engine and a five-speed automatic/manual transmission with paddle shifters. It features a narrow 50-inch width for navigating tight trails and an updated interior with standard under-seat storage and improved heat management. It offers a 1,000 lb towing capacity, 450 lb bed capacity, independent double-wishbone suspension, and selectable 2WD/4WD.
| Displacement (cc) | 518 cc |
| Engine Type/Details | Liquid-cooled longitudinally mounted single-cylinder |
| Cylinders | 1 |
| Transmission | Five-speed automatic transmission with AT/MT modes with paddle shifting and reverse. |
| Final Drive | 2WD/4WD; direct front and rear driveshafts with switchable 2WD/4WD |
| Suspension-Shocks-Travel (Front) | Independent double wishbone with hydraulic shocks; 147 mm (5.8 in) travel |
| Suspension-Shocks-Travel (Rear) | Independent double wishbone with adjustable hydraulic shocks; 150 mm (5.9 in) travel |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Valve Train | OHV, 2 valves |
Honda Pioneer 520 Side-by-Side
Sized right and loaded with features. The Honda Pioneer 520 is all about striking the right balance – between compact size and functionality, between power and versatility. It’s tough but nimble, and always ready to deliver.
Reliable Power
The Pioneer 520’s liquid-cooled engine provides plenty of torque and horsepower to make tough jobs or tough trails easy to handle. And because it’s built by Honda, you know you can depend on it to be rock-solid reliable.
Efficient engine
The Pioneer 520’s liquid-cooled engine is mounted longitudinally. By orienting the crankshaft front to back in the chassis, the flow of power is straight to the wheels without any right angle detours, reducing powertrain friction and putting more grunt to the ground.
Ample ground clearance
By using an overhead-valve layout and a semi-dry-sump lubrication system, engine height is significantly reduced, lowering centre of gravity while also improving ground clearance.
Tackle any terrain
Shiftable 2WD/4WD system provides the efficiency of two-wheel drive while retaining the ability to select 4WD quickly via a dash-mounted lever when conditions demand.
